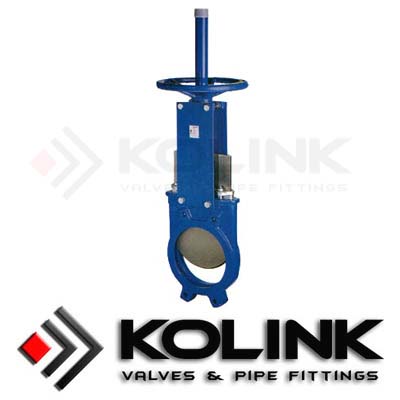

Knife Gate Valve Replaceable Seat

Knife Gate Valve -> Replaceable Seat Knife gate valve

Kolink knife gate valves are available in various designs, one-piece body and two-piece bodies, rising stem and non-rising stem, uni-direction and bi-direction structures, resilient and metal seat rings, bonnetless and bolted bonnet designs. For optional designs, deflection cone could divert the flow of abrasive slurries and protect valve seat from abrasion, V port disc and through conduit design are used for throttling service, per customers' requirements.

Features of Replaceable Seat Knife gate valves:

Unidirection design
Replaceable resilient seat
Wafer type cast iron body
Self-cleaning mechanism
Rising stem, outside screw & yoke
Yoke type: Plate or Casting

Applicable Standards of Replaceable Seat Knife gate valves:
a) Design & Manufacture: MSS SP-61, ASME 16.34
b) Face to Face: MSS SP-81, ASME B16.10, EN 558
c) Connection End: ASME B16.5, EN 1092, JIS B2220
d) Test : MSS SP-81

Sizes: 2" - 48" or DN 50 - DN 1200
Pressure Rating: Class150 or PN6 - PN16
Materials of valve body: GG25 / A126 B, GGG40 / A536 60-40-18, etc.
Operation: Manual, Gear, Pneumatic, hydraulic and Electric actuator
