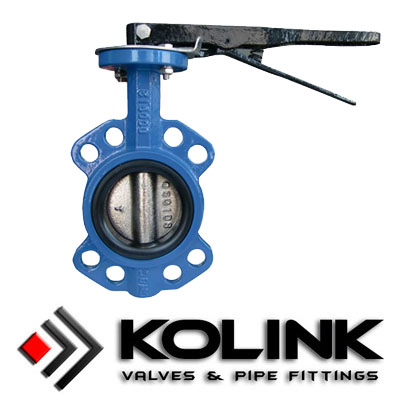

Wafer Type Center Line Butterfly Valve

Resilient Seated Butterfly Valve -> Wafer Type Center Line Butterfly Valve

Resilient seated butterfly valve, uses the flexibility of rubber seat, could easily achieve zero leakge, therefore is a widely applied valve in oilfield, agriculture, water & waste water and mining industries. Due to its rubber lined body materials, it is usually used in low pressure lines.

Wafer type is the common style of butterfly valve and is less expensive than the lug type. The wafer butterfly valve is installed between two flanges. The valve is kept in place by using bolts or studs and nuts from flange to flange. This type of installation, of course, makes it impossible to disconnect just one side of the piping system from the valve.

Features of Wafer Type Center Line Butterfly Valves:

Center Lined, Resilient Seat
Bi-Directional Sealing
Shutoff and Throttling Operation
Wafer Body Type, Lug Type or Flanged Type

Applicable Standards of Wafer Type Center Line Butterfly Valves:
a) Design & Manufacture: API 609, EN 593, AWWA C504
b) Face to Face Dimension: API 609, EN 558
c) End Connection: ASME B16.5, EN 1092
d) Test and Inspection: API 598, EN 12266

Sizes: 2" - 48" or DN50 - DN1200
Pressure Rating: Class150 or PN10 - PN16
Materials of Valve Body: GG25, A126 B, GGG40, A536, WCB, LCB, CF8, CF3, CF8M, CF3M, etc.
Operated by: Lever, Gear, Pneumatic, hydraulic and Electric actuator
